JX Servo 15kg High Torque Metal Gear Digital Coreless Low Profile Servo PDI-HV5215MG

JX Servo PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo for 1/8 1/10 RC Car

Servo detail:
Dead band: 2?s
Control System: +Pulse Width Control
Working frequence: 1520?s / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60C
Operating Speed (6V): 0.09sec/60
Operating Speed (8.4V): 0.07sec/60
Stall Torque (6V): 13.6kg.cm (118.9oz/in)
Stall Torque (8.4V): 15.6kg.cm (164.14oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.5*20.5*26.8mm /1.59*0.8*1.05 in
Weight:52 g (1.67oz)
Connector Wire Length: JR220mm
Bearing: 2BB
Gear teeth:25T

Model:PDI-HV5215MG
Description: 8.4V coreless digital low profile servo
Suit for :1/8 1/10 RC Car

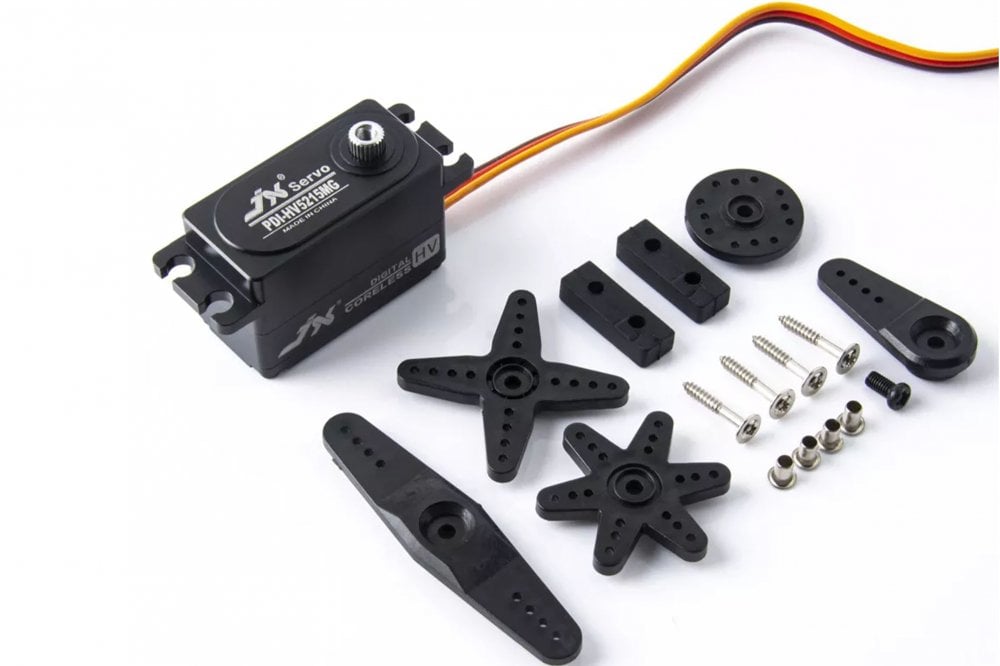

Package Included:
1 x Servo
1 x Accessories
