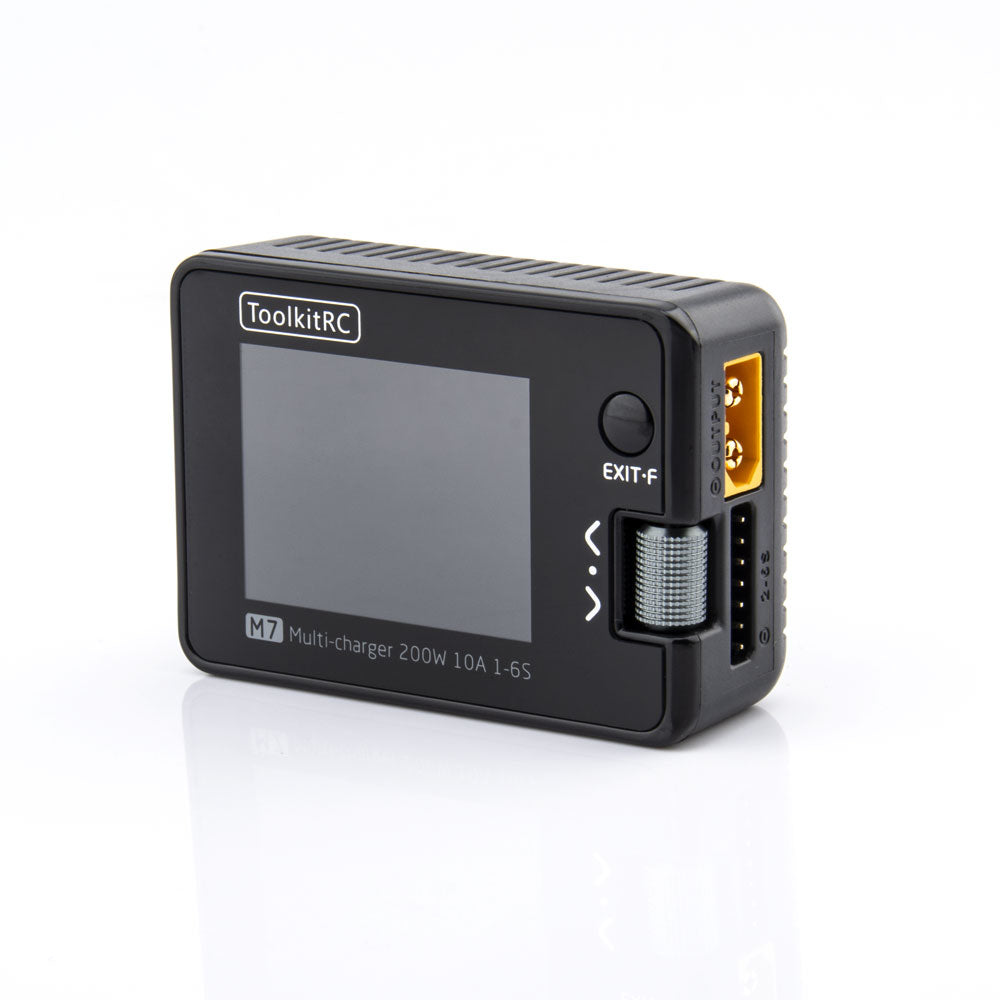

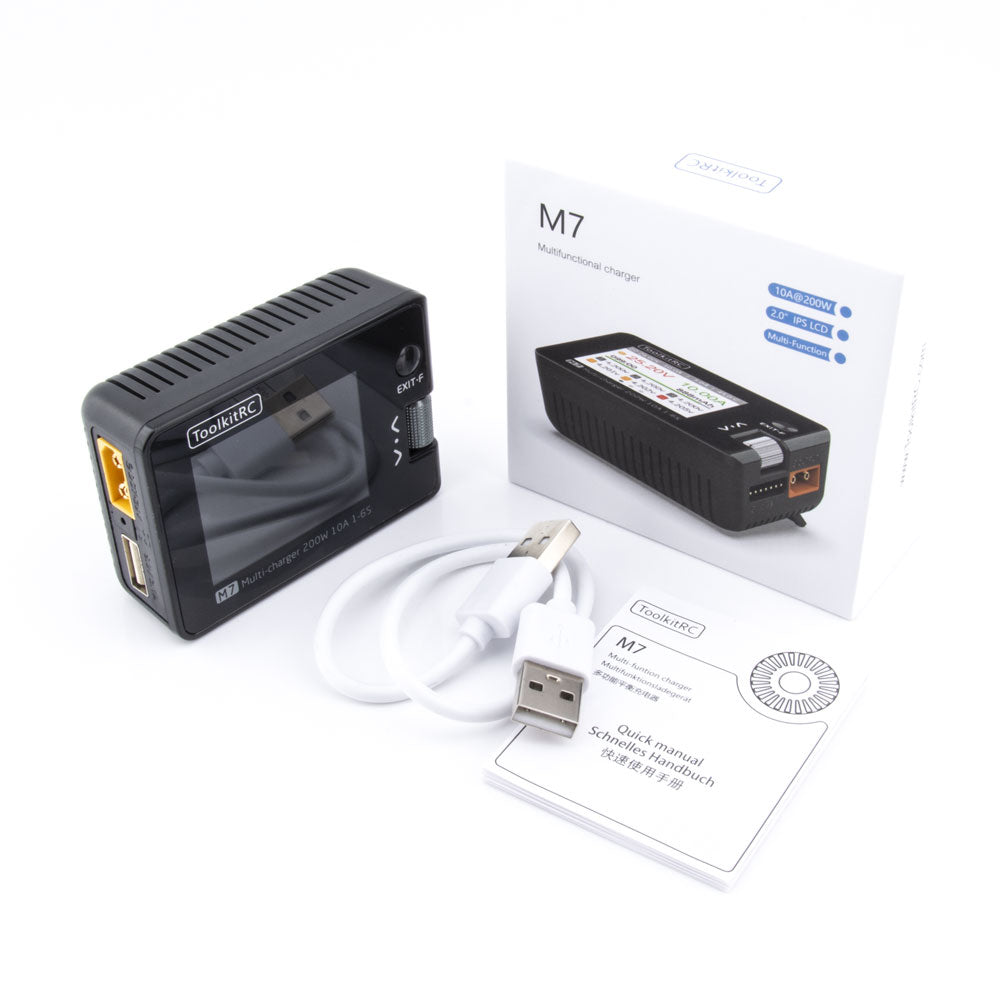

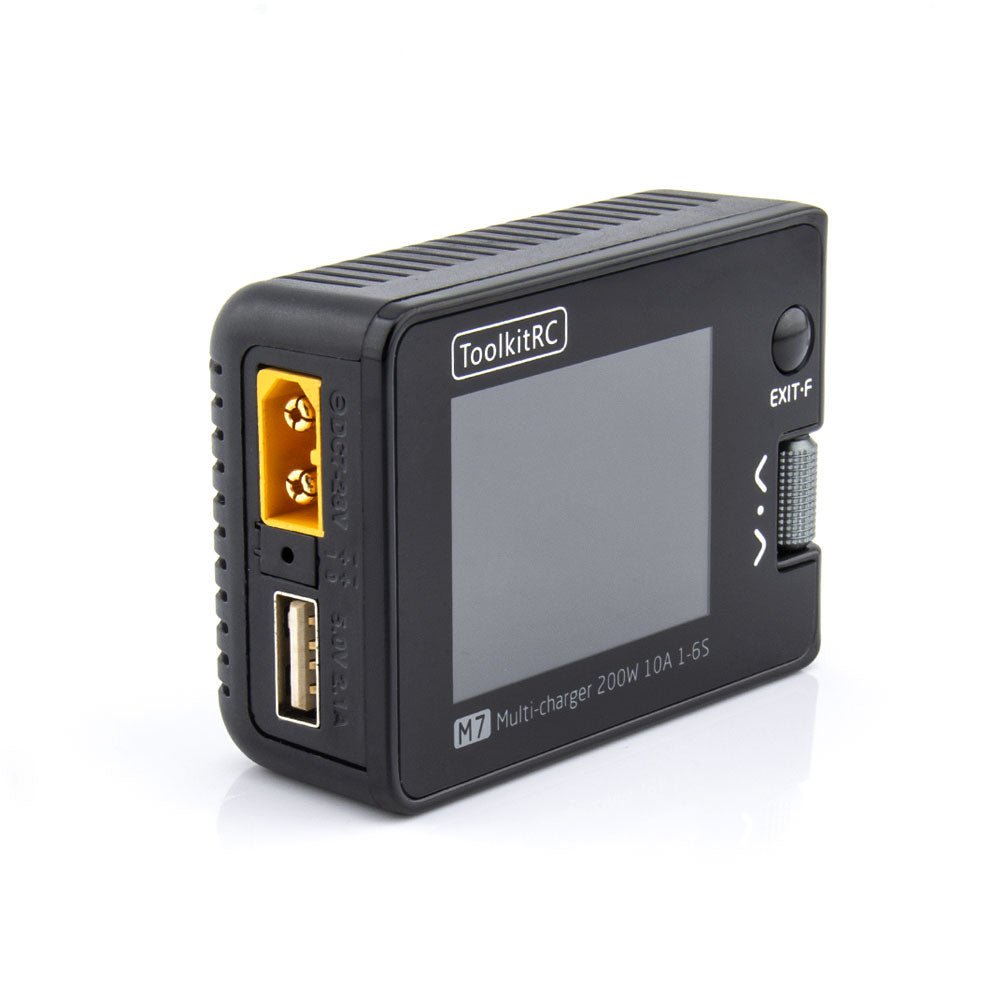

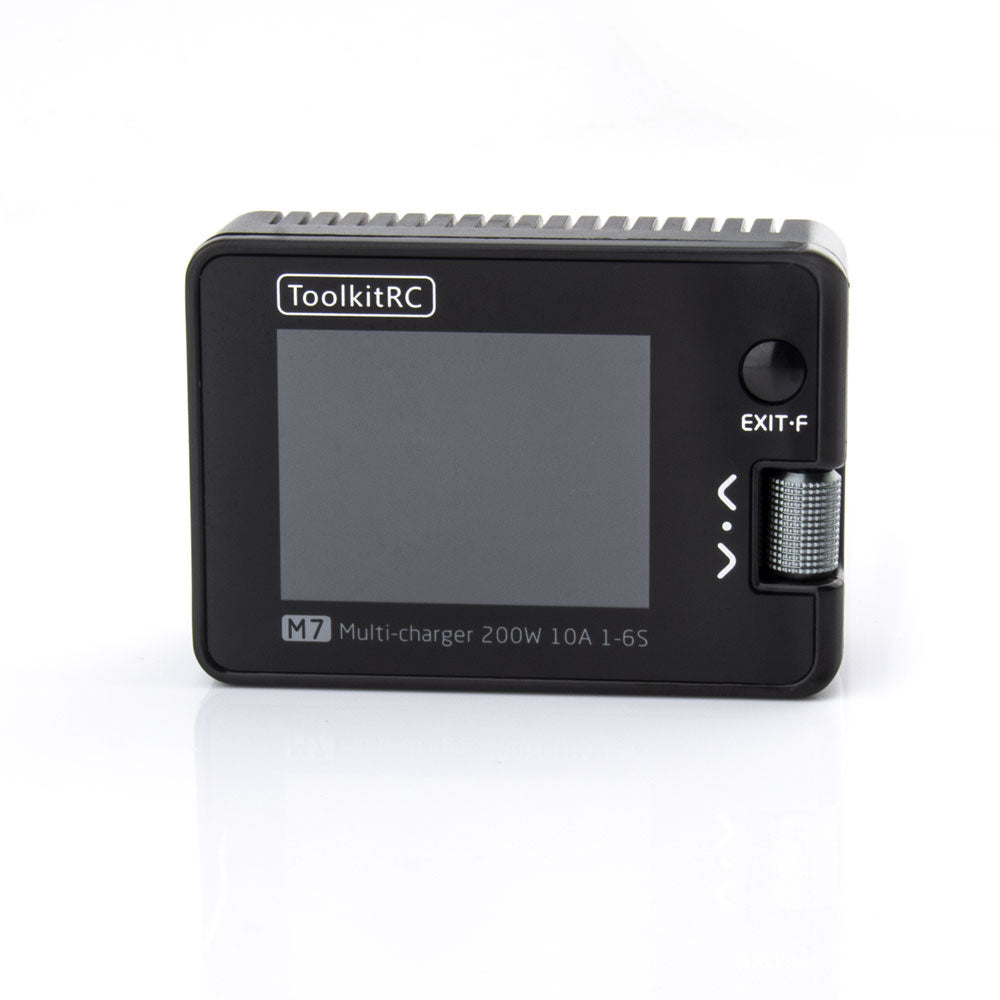

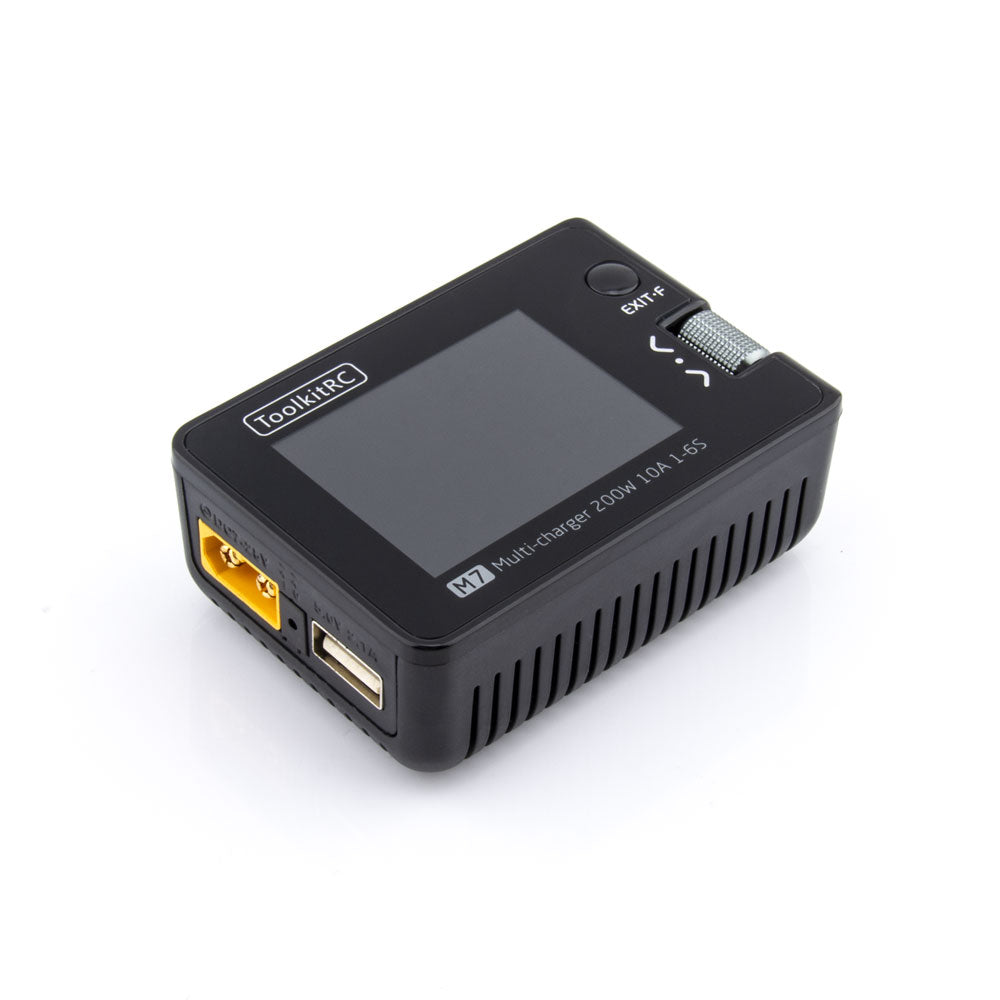

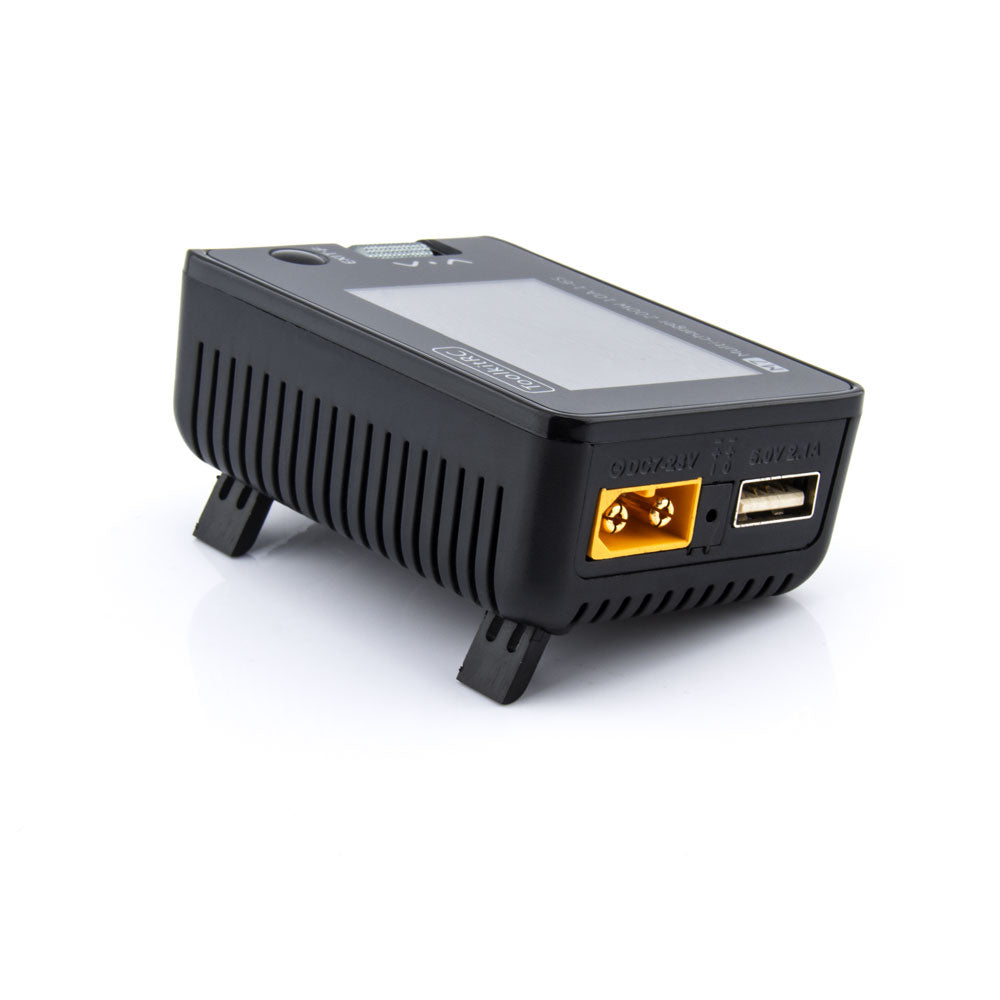

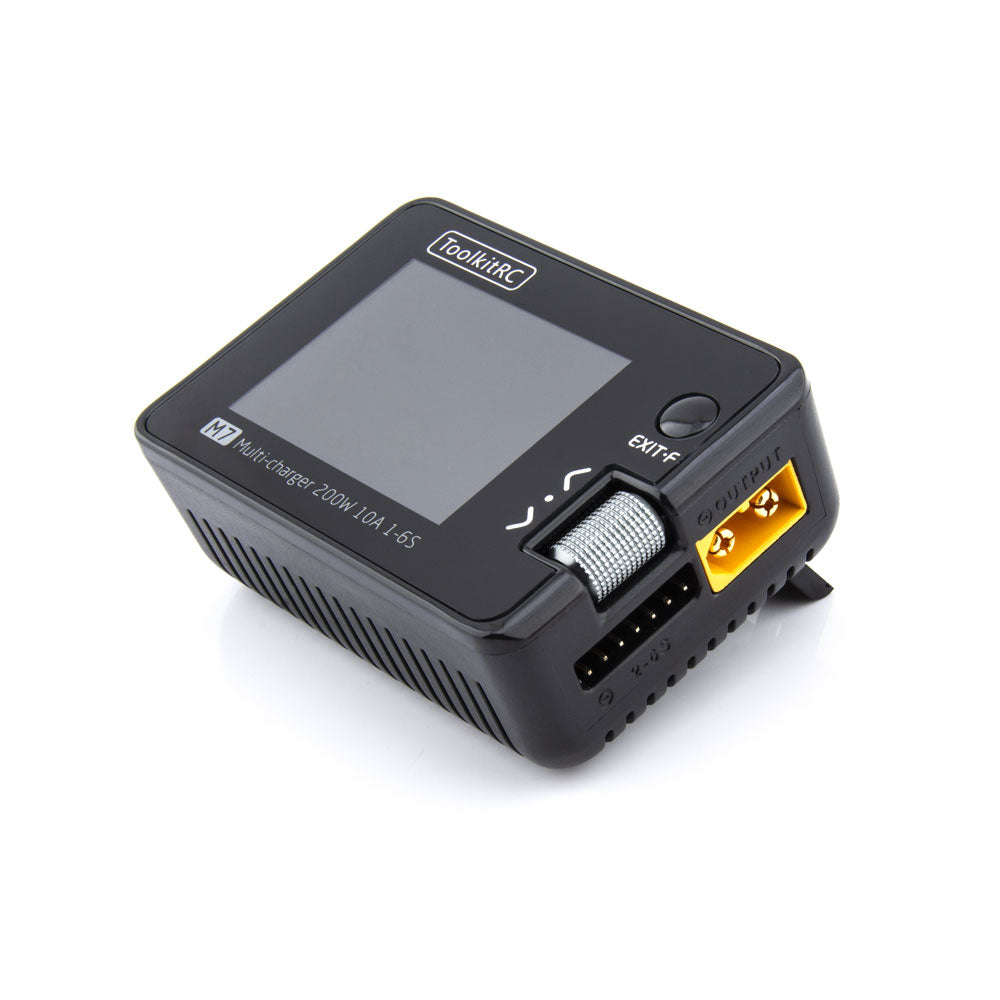

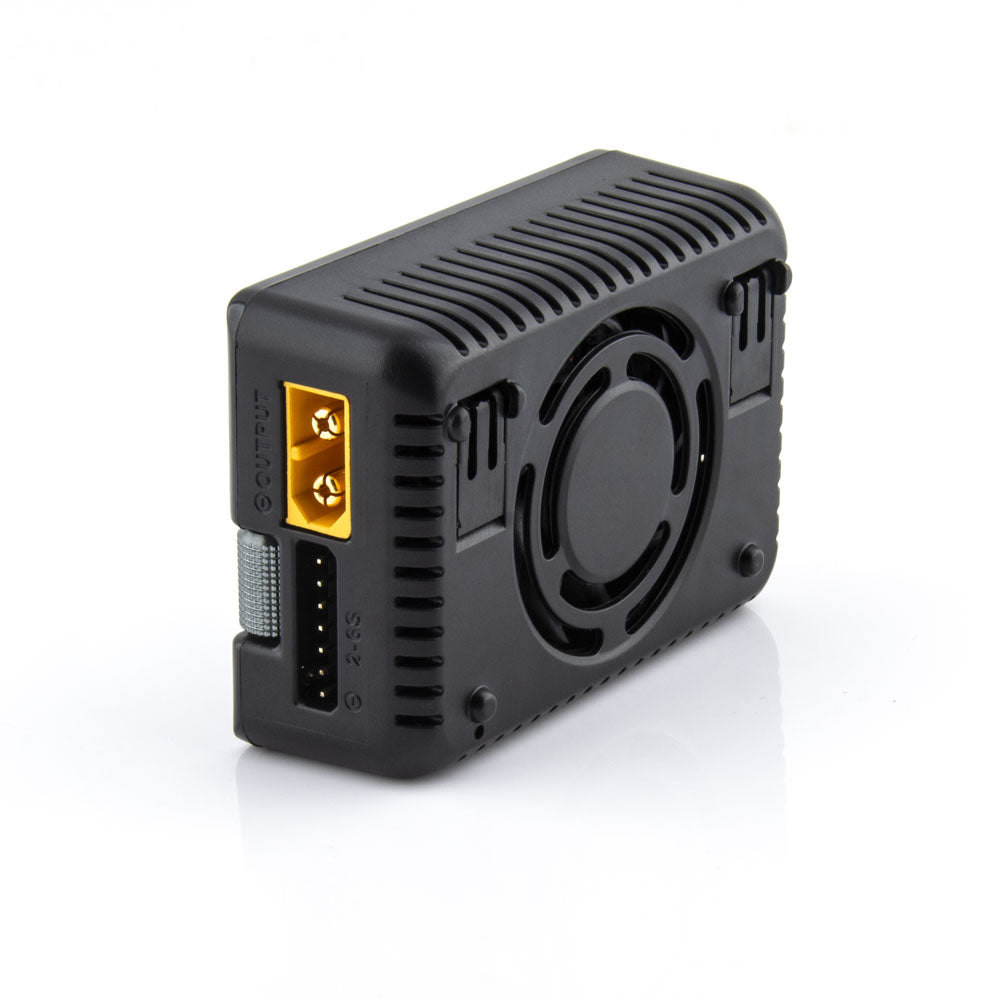

ToolKitRC M7 200W 10A 2-6S DC Multifunction Balance Charger (DC INPUT)

Specifications:

Charger.

• Input voltage: 7.0-28.0V @MAX 12A
• Type of battery: Lipo LiHV LiFe Lion@2-6S NiMh @1-16S Pb @1-10S
• Balance current: 400mA @2-6S
• Charger power: 200W @MAX 10A
• Discharge power: 200W @MAX 10A Recycle mode. 10W@3A Normal mode
• USB: 2.1A @5.0V or Upgrade

Measurer.

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• Internal resistance: 1-99mR @1-6S
• ESC: 200W@10A     PWM Output

Output.

• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
• Over Current Cutoff time: <5ms

General.

• Product size: 73*51*27 mm
• Product weight: 90g
• Pack size: 84*79*39 mm
• LCD: IPS 2.0inch LCD 320*240 Pixel
